Bathroom
Optimisation and efficiency test
The goal here was to create an extremely optimised scene as quickly as possible. It took me two evenings of free time.

Final scene overview:
-2000 triangles
-1X 512x1024 texture for the tiles, the bath and the props
-1X 256x256 texture for the plaster

Details:
-No transparency was used for the curtain in Unreal since the engine does not support lit translucency.
-The pixel ratio of the textures is 256x256 for 1 meter.
-Speculars and normal are polished for in-game render.


References
Here are the key references I used as inspiration.

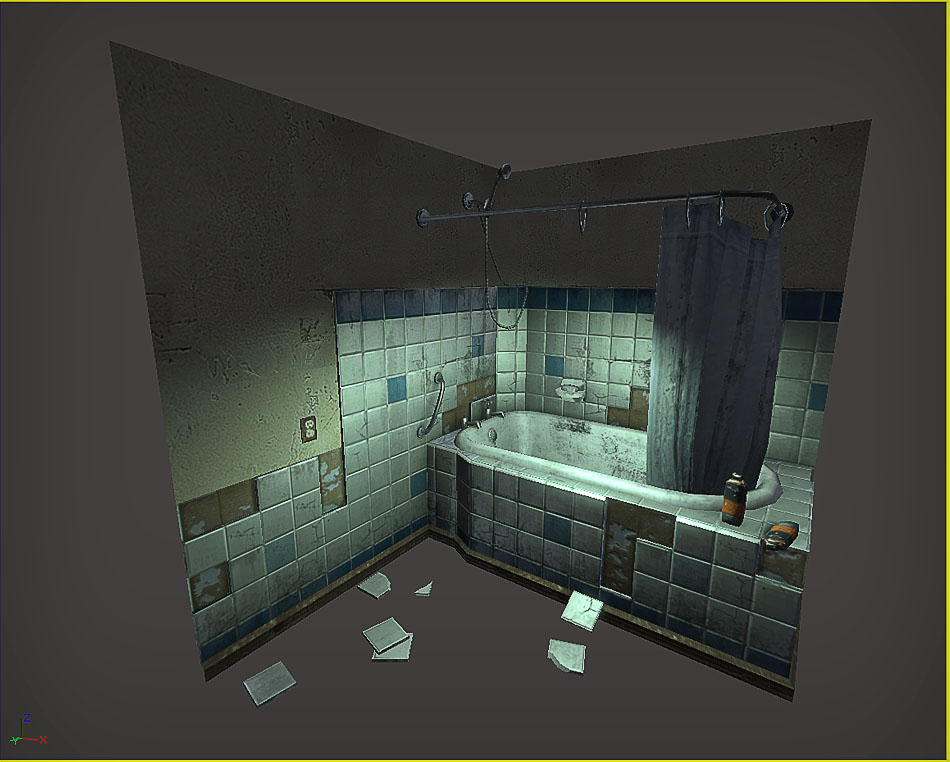

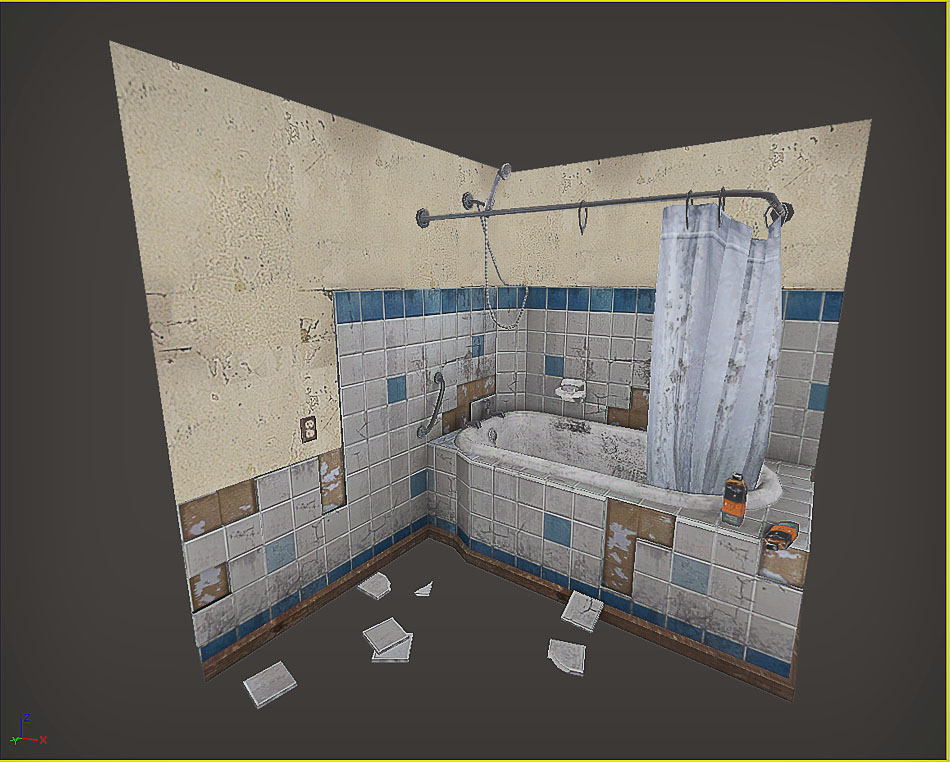

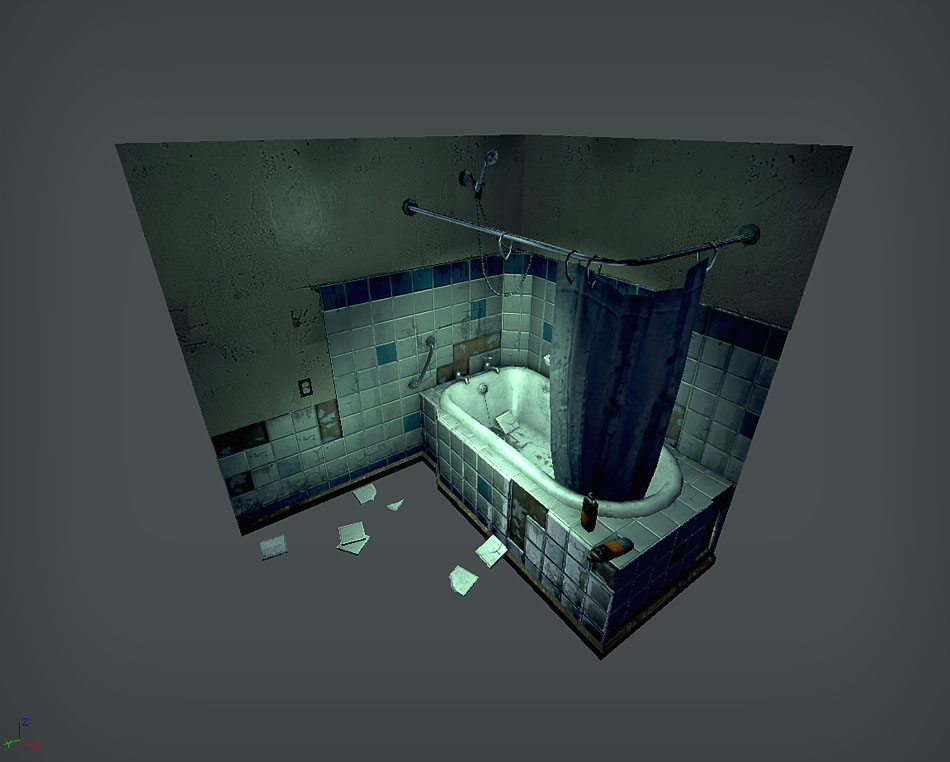

Screenshots of the scene in the Unreal 3 engine

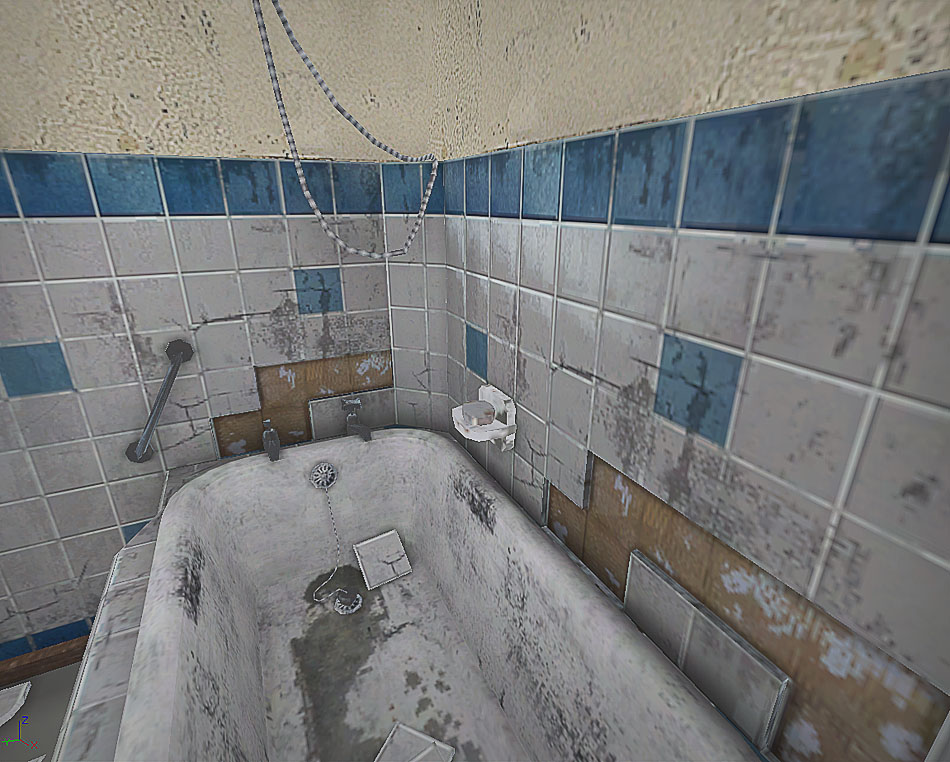

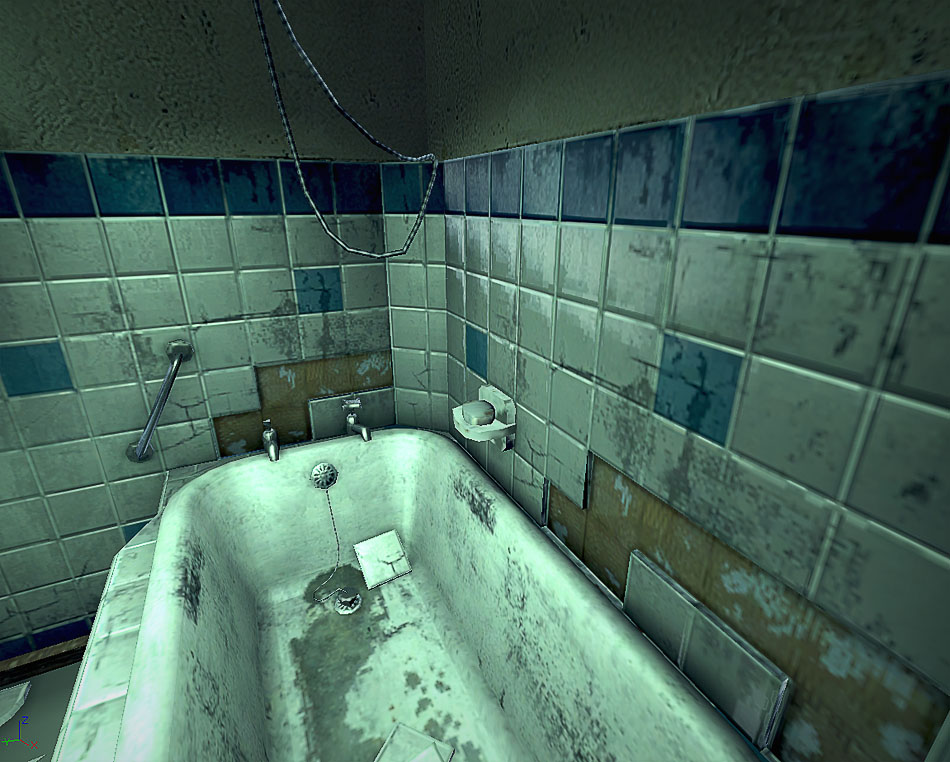

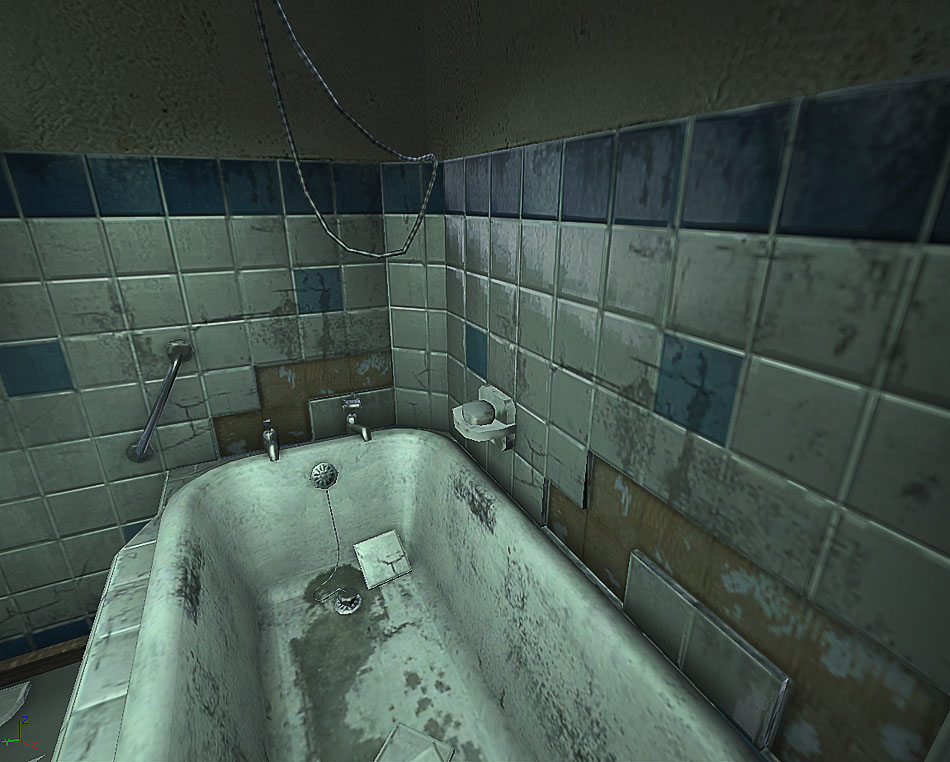

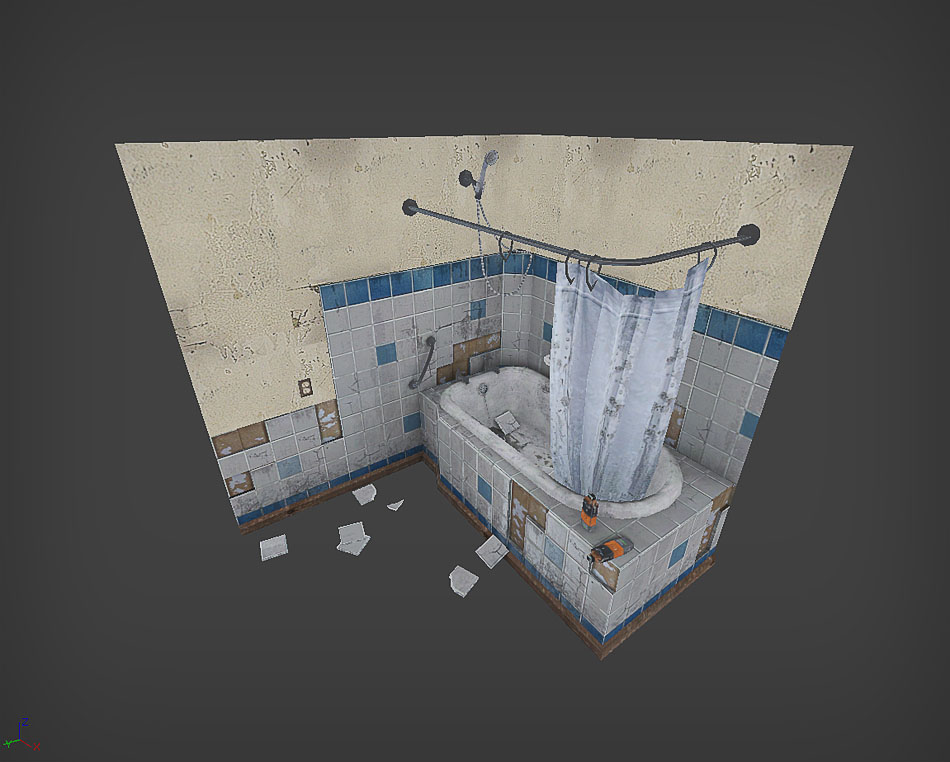

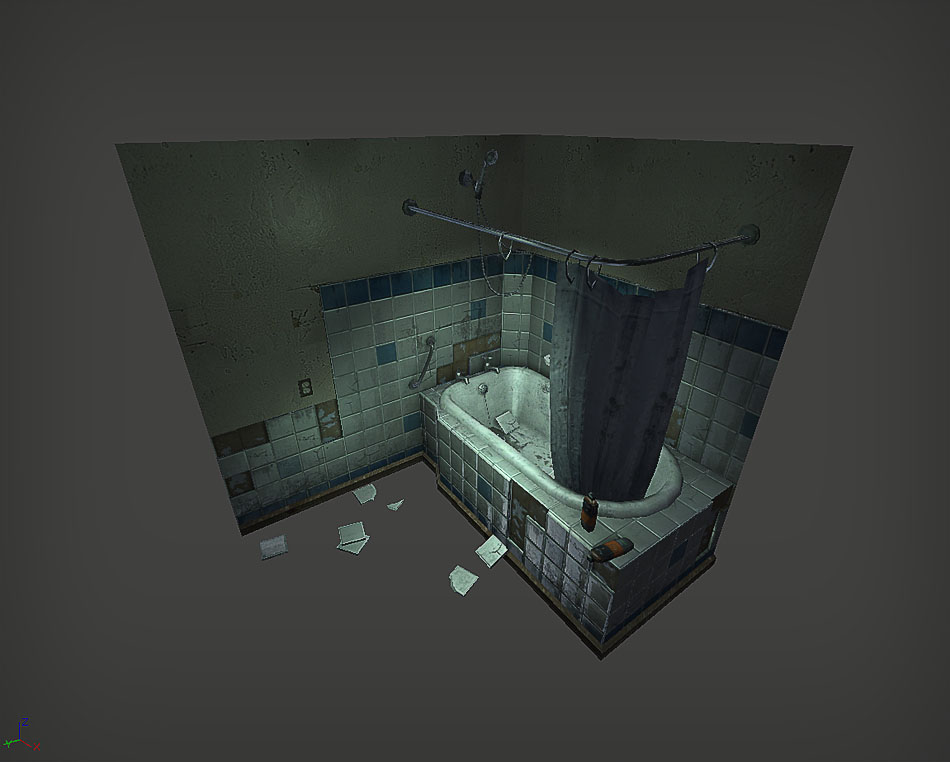

The first screenshot of each row is with post-process effects applied, the second one is without and the last one is only the color map.
Shaders in Unreal

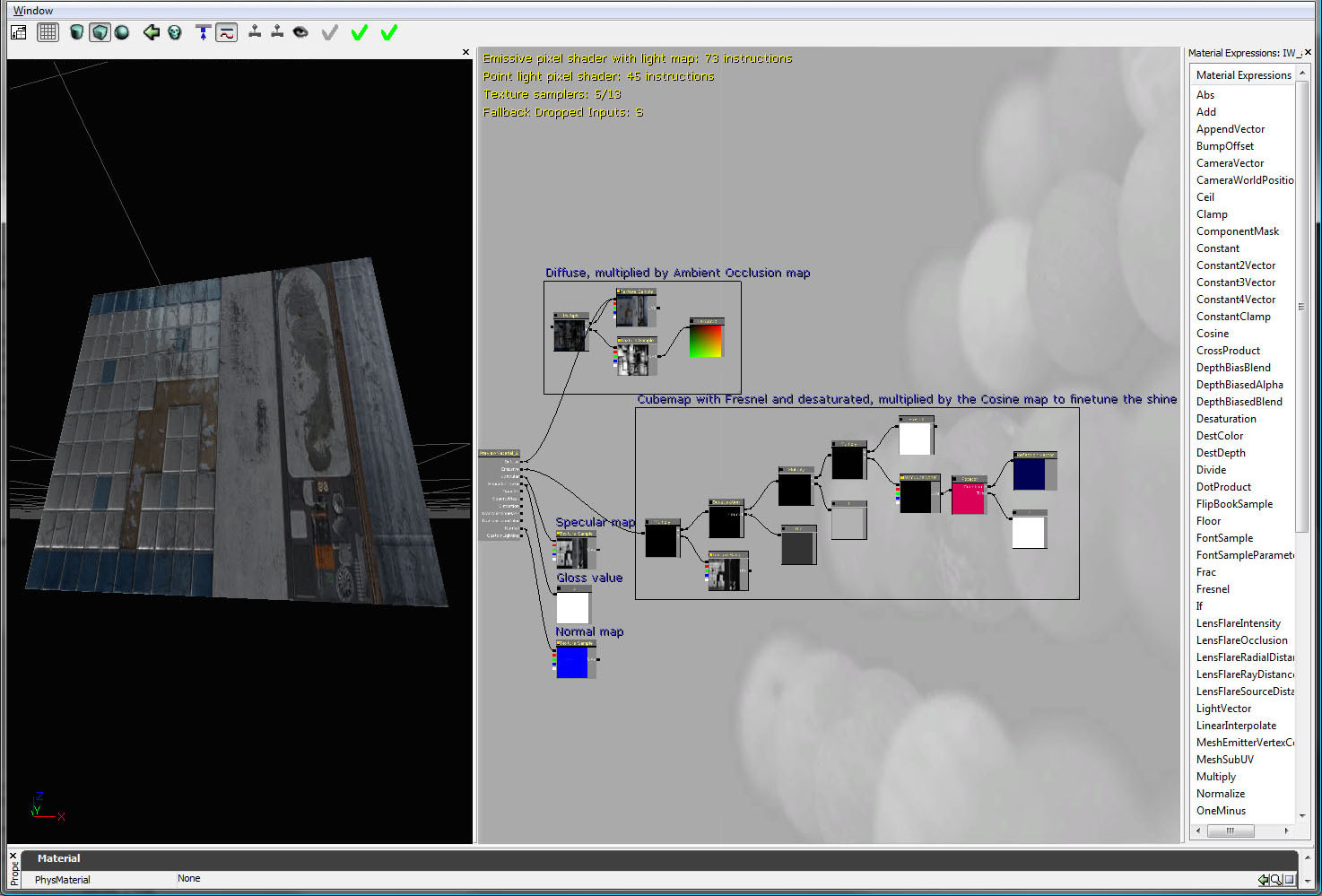

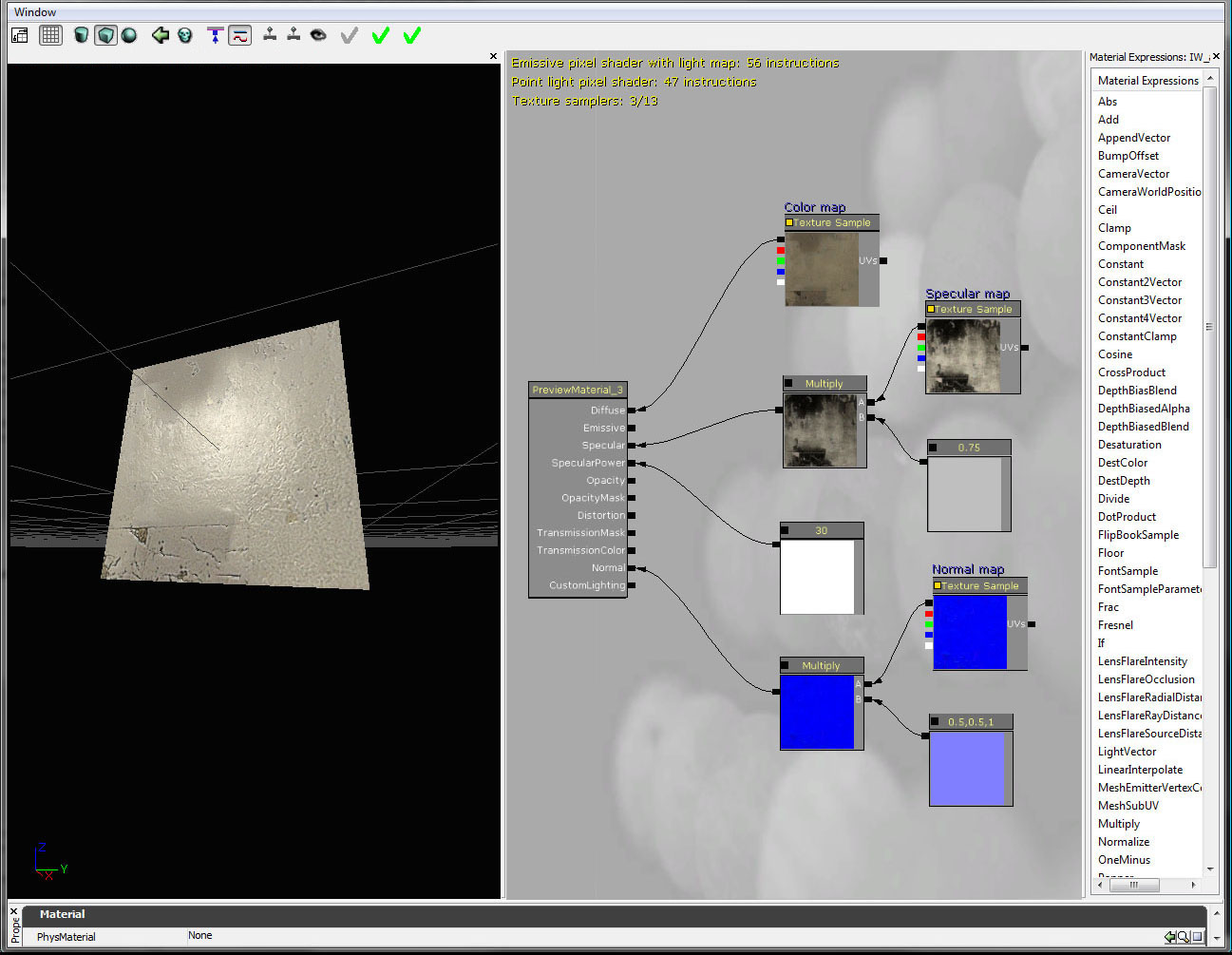

They show what operations I did to get the cubemap on the tiles and bath texture and using the Cosine map to mask it.

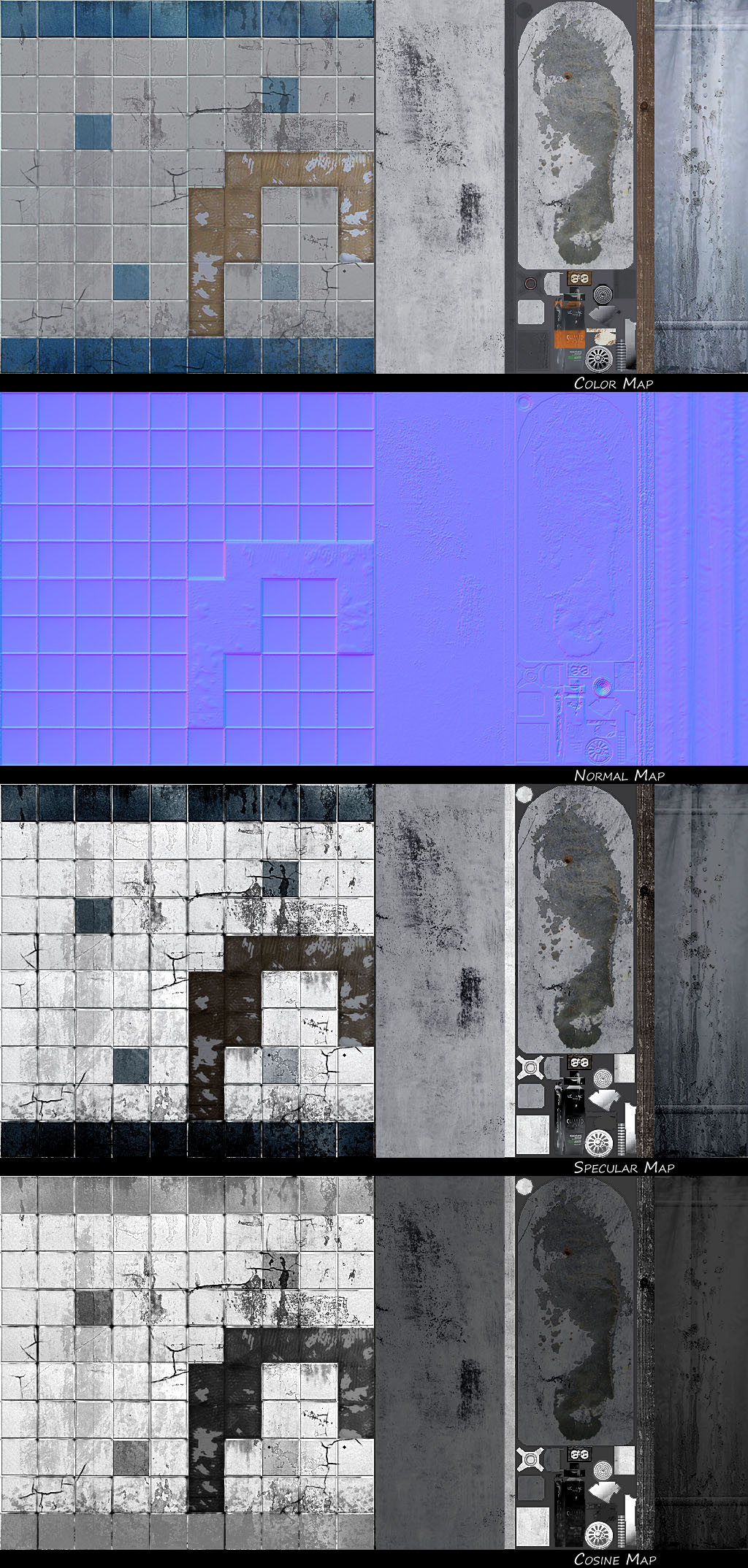

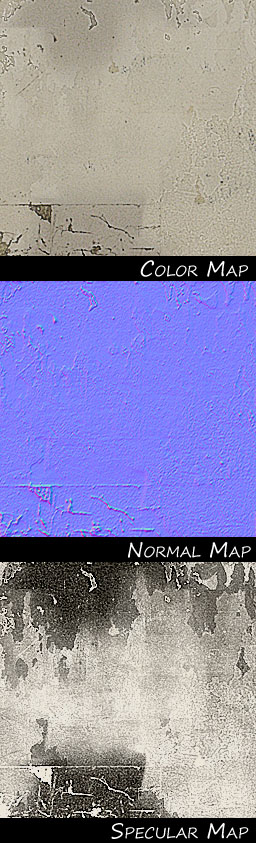

The texture maps



Wireframe

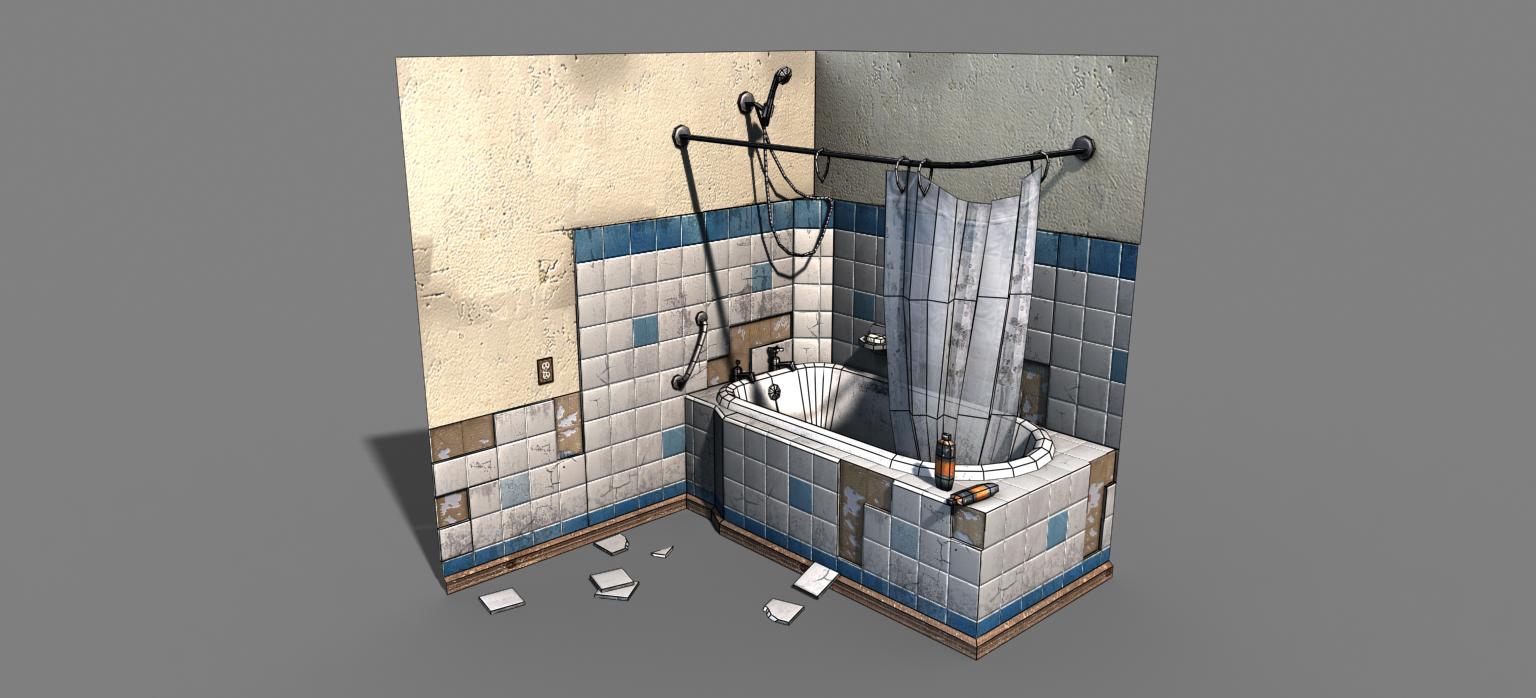

And finally, here is a Max scene render with the wireframe:
